Live Streaming configuration

The system allows you to live stream on any video platform which support RTMP, Facebook Live and Windows Media.

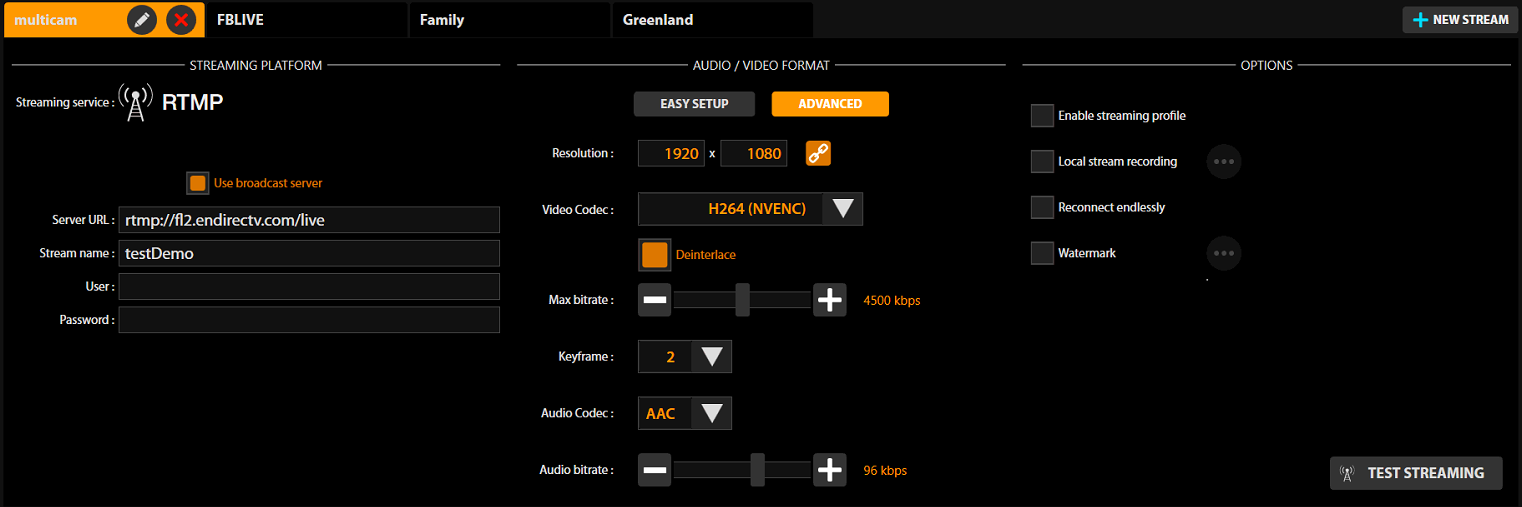

Live stream sets

The system allows you to create different LIVE STREAM SETS with independent Streaming profiles. Operator is able to choose required SET or activate / deactivate Profiles.

LIVE STREAM SET can be changed from the main settings interface

Add new stream set

All systems have a Default set from the beginning. It can be changed by the operator.

To add a new LIVE STREAM SET, click on in the LIVE STREAM SET area.

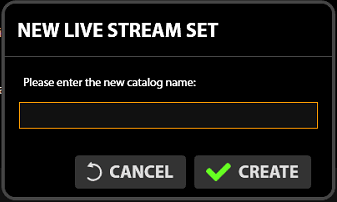

In the pop-up window, add set name and click button.

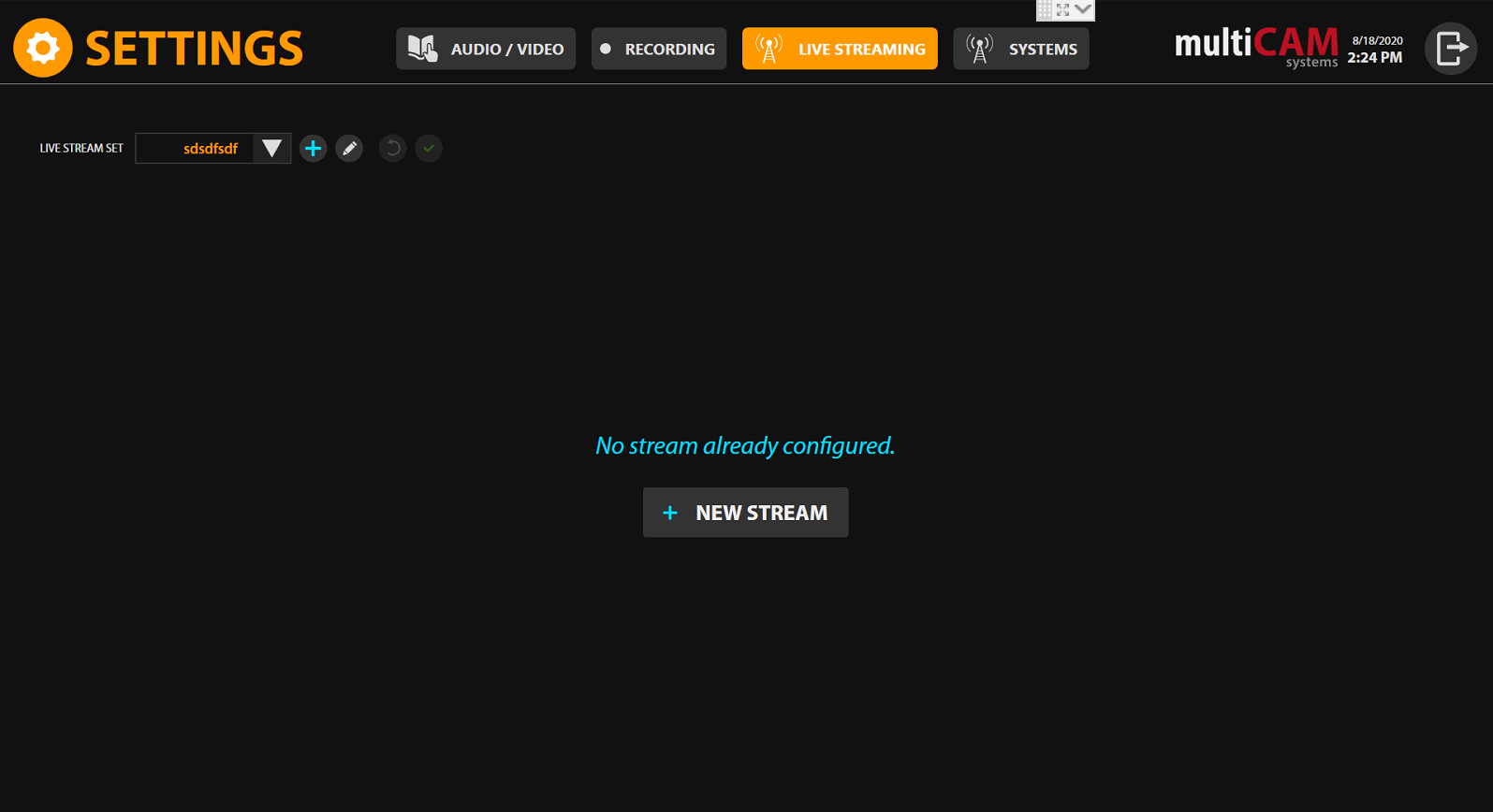

New set will be opened automatically.

Edit stream set

To edit an existing LIVE STREAM SET, click on in the LIVE STREAM SET area.

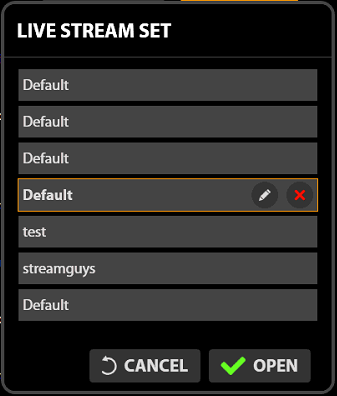

Choose what set should be edited in the pop-up window and click on, change name and save .

Delete stream set

To delete an existing LIVE STREAM SET, click on in the LIVE STREAM SET area.

After choosing which set should be deleted from the pop-up window, clickand confirm..

Change stream set

To change a LIVE STREAM SET click on in the LIVE STREAM SET area and choose set in drop down menu.

Streaming profiles

Add RTMP streaming profile

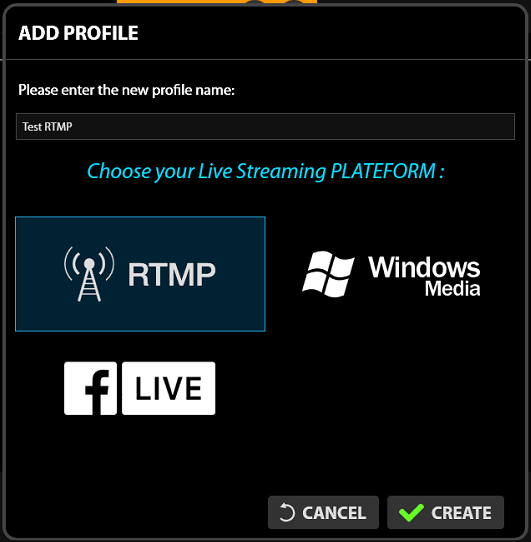

To add a new RTMP profile, click on button. In the pop-up window, add the name of the streaming profile, choose RTMP type and click .

After, in the STREAMING PLATFORM area, fill Server URL and Stream name (User / Password if needed). Save settings by clicking the button.

Add Facebook Live streaming profile

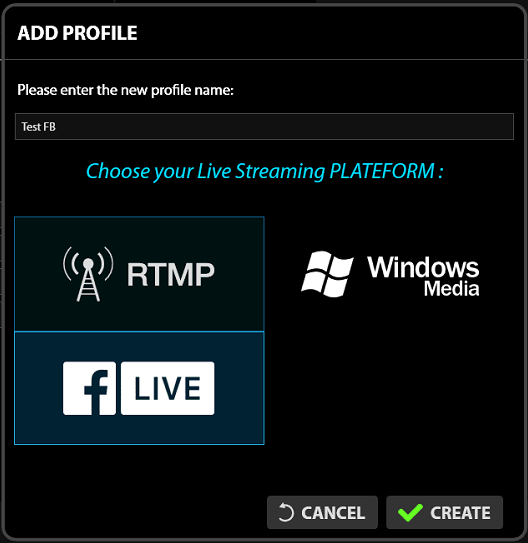

To add a new Facebook Live profile, click on . In the pop-up window, add the name of the streaming profile, choose Facebook Live type and click .

In the STREAMING PLATFORM area, accept terms and conditions and click on.

After, log in with required Facebook account.

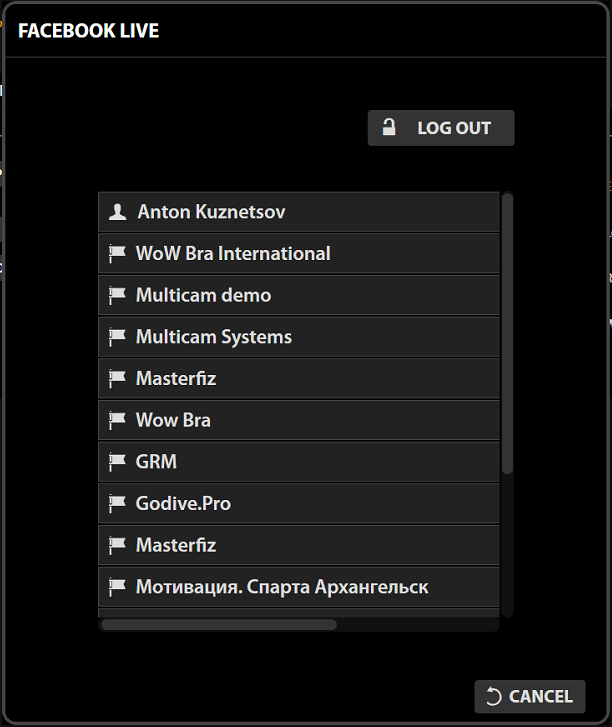

Choose the page where the stream will be launched..

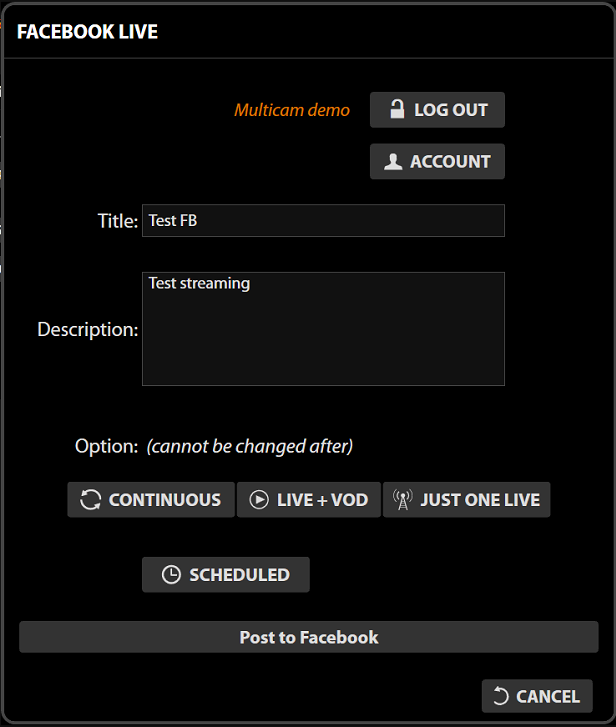

Add the Title and Description (if needed) and choose type of the Option:

  • CONTINUOUS - 24/7 stream type
  • LIVE+VOD - stream with saving video
  • JUST ONE LIVE - just one stream

Option will not be changed after.

Also, it is possible to create a scheduled stream using .

Operator is able to change the Facebook page by clicking on the.



When you've finished with the settings, click to create profile and to save it.



To edit scheduled stream (Title and Description) please click on .

Add Windows Media streaming profile

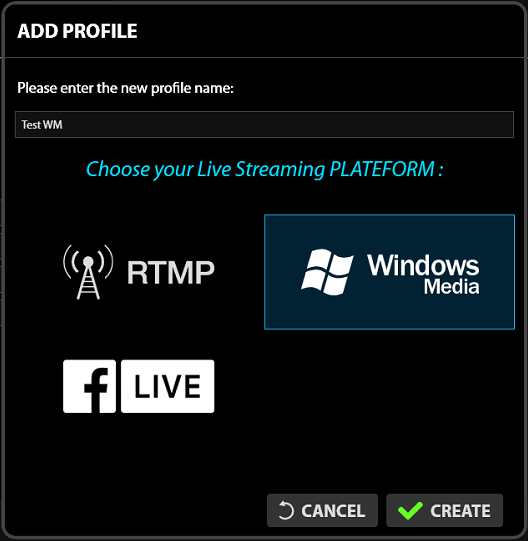

To add a new Windows Media profile, click on button. In the pop-up window, add the name of the streaming profile, choose the RWindows Media type and click .

After, in the STREAMING PLATFORM area, fill the Server URL and the Stream name (User / Password if needed). Save settings by clicking button.

Streaming profile interface

There are 3 main areas for each streaming profile:

  • STREAMING PLATFORM - streaming platform settings. Interface is dependent on the platform chosen.
  • AUDIO / VIDEO FORMAT - audio and video format settings (Resolution, Codec, Bitrate etc.)
  • OPTIONS - advanced options for each profile

Audio / Video format

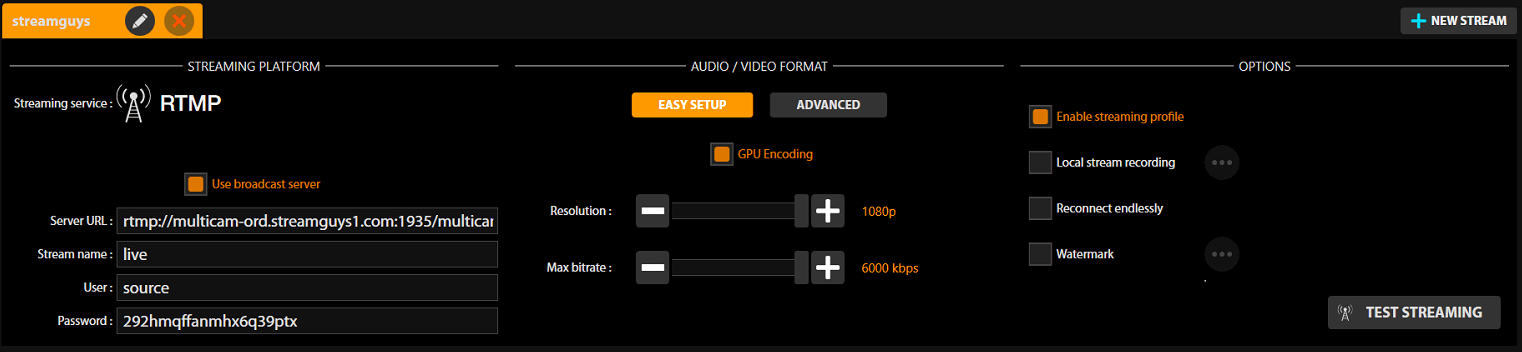

Easy setup

This option will help to configure audio and video formats without needing advanced engineering skills and experience.

With Easy setup, only 3 parameters can be changed:

  • GPU Encoding - enable or disable GPU core for this streaming profile.
  • Resolution - change resolution with a standard parameters (HD, SD etc...)
  • Max. bitrate - quality of the stream

SDI BOXes support 1 recording H.264 GPU + 1 live streaming H.264 GPU + 1 live streaming H.264 CPU. IP BOX supports 1 recording H.264 GPU + 1 live streaming H.264 GPU

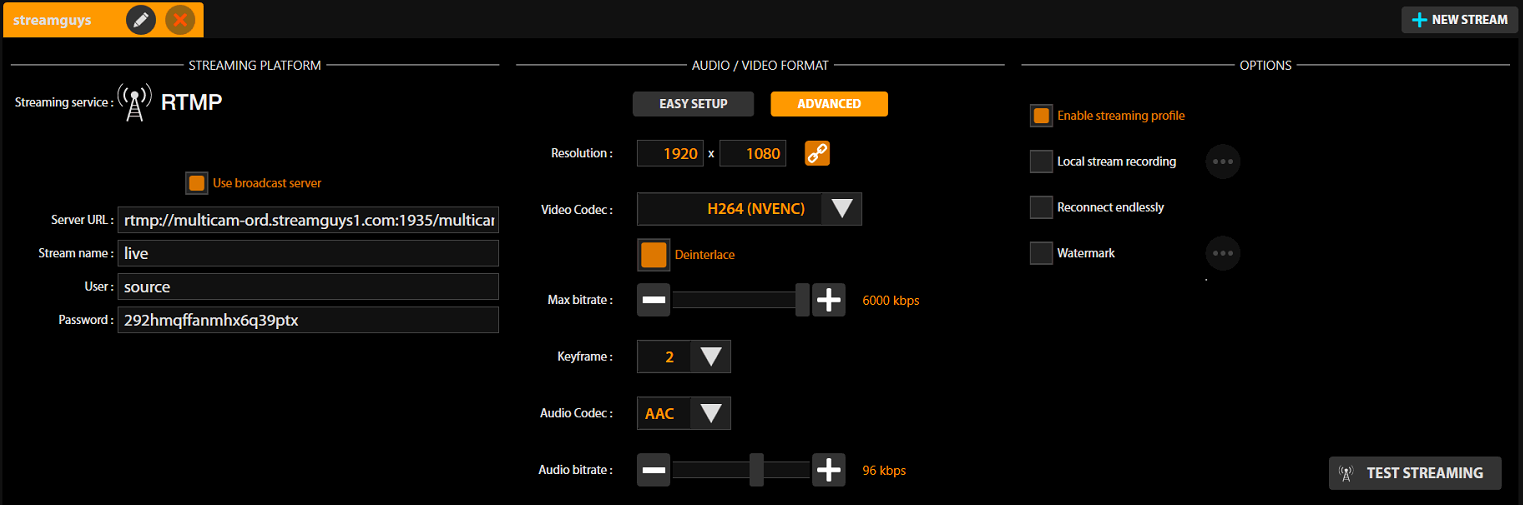

Advanced setup

This option will help to configure audio and video formats with advanced engineering skills or experience.

With Advanced setup, different parameters could be changed:

  • Resolution - change resolution with a custom parameters.
  • Video Codec - change video codec between H264 NVENC (GPU) and H264 CPU Open (CPU)
  • Deinterlace - enable or disable deinterlace.
  • Max. bitrate - quality of the video stream.
  • Keyframe - keyframe interval
  • Audio codec - change audio codec between AAC and MP3
  • Audio bitrate - quality of the audio stream.

Options

In this section, special parameters of the streaming profile can be changed.

  • Enable streaming profile - enable or disable profile. If profile is disabled, operator will not see it in UI.
  • Local stream recording - this function allows you to record each stream.
  • Reconnect endlessly - this function allows to keep connection with the streaming server.
  • Watermark - this function allows to add specific watermarks for each profile.

Test de Streaming

Vous pouvez tester la bonne configuration du flux de streaming, indépendamment de vos sources vidéo/audio. Ceci est très pratique pour tester la ligne Internet au tout début de l'installation.

Une séquence vidéo animalière avec son est alors jouée et vous permet de vérifier le bon fonctionnement de la diffusion.
