Settings Vidéo
Depuis l'écran d'accueil des système (voir Lancement du système), cliquer sur
pour ouvrir les "Settings".
Il vous sera demandé un mot de passe :
- Pour accéder aux réglages généréalement utilisés, tapez "admin"
- Pour accéder à l'ensemble des réglages possibles, tapez "superadmin"
The relation between SDI connectors and sources name inside the system
| multiCAM SDI BOX 8+1 | |
| SDI OUT | DeckLink Studio 4K |
| SDI IN/OUT | DeckLink Quad 2(8) |
| SDI IN 1 | DeckLink Studio 4K |
| SDI IN 2 | DeckLink Quad 2 |
| SDI IN 3 | DeckLink Quad 2(2) |
| SDI IN 4 | DeckLink Quad 2(3) |
| SDI IN 5 | DeckLink Quad 2(4) |
| SDI IN 6 | DeckLink Quad 2(5) |
| SDI IN 7 | DeckLink Quad 2(6) |
| SDI IN 8 | DeckLink Quad 2(7) |
| DVI-IN 1 | Video (00 Pro Capture DVI) |
| DVI-IN 2 | Video (01 Pro Capture DVI) |
Video outputs
In the OUTPUTS tab you are able to configure output options except Live streaming.
Device out
In the DEVICE OUT section you can enable
or disable
SDI and HDMI outputs with the checkbox on the left.

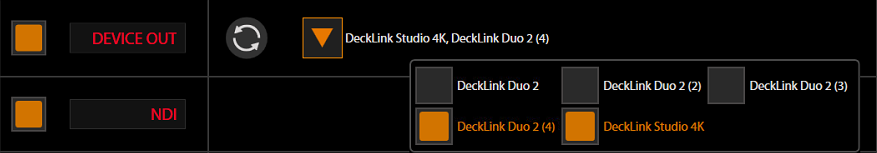

To enable 2nd SDI output, click on the arrow and choose Decklink Duo 2(4).
Decklink Studio 4K should be chosen as a main output, Decklink Duo 2(4) as a second output.
NDI out
In the NDI OUT section you can enable or disable NDI outputs with the checkbox on the left.
Medialist
In the MEDIALIST section you can enable or disable external SDI output to send video from Media Player to screens or other destinations.
Only DeckLink Duo 2(4) can be assigned as a MEDIALIST output.
Output video playback
With Output video playback you can enable showing video from MEDIALIST on PGM output in full screen mode.
Video inputs
In the INPUTS tab you are able to configure input video sources.
Video format
First, you have to choose the system video format with thedrop-down menu Format at the bottom of the interface.
This format will be automatically applied for PGM output.
Add INPUT
To add a new input, click on the
button.
There are 3 input options (Capture device, NDI stream, IP stream) that are available for multiCAM SDI BOX and 2 input options (NDI stream, IP stream) for multiCAM IP BOX.
Add SDI input
To add a SDI input click on
. In the Device drop-down menu, choose input.
In the Format drop-down menu, choose correct video format.
All video formats (System, Source input and Cameras) have to be the same.
Add NDI input
To add a NDI input click on
. In the Source drop-down menu, choose correct NDI source.
Add IP input
To add an IP input click on
. In the field Stream, add the RTSP address of the source and choose the Buffer option: automatically - Low delay, or manual buffer size.
Type of inputs
multiCAM suite supports 4 types of inputs: PTZ camera, fixed camera, robotic systems (multiCAM SPIRIT), and PC-Input. Full list of integrated PTZ cameras can be found here.
PTZ camera configuration
Click on the
in the ADD INPUT window. In the Model drop-down menu, choose model of the camera, Control type - IP, and enter IP address of the camera and port.
Fixed camera configuration
If current input is used for fixed or handle camera or as input from other devices, click on
in the ADD INPUT window.
Robotic systems configuration
Click on the
in the ADD INPUT window and choose type of the robotic system.
PC-input configuration
For using input as a PC-input, click on and enable PC-INPUT checkbox.
