Video settings
Depuis l'écran d'accueil des système (voir Lancement du système), cliquer sur
pour ouvrir les "Settings".
Il vous sera demandé un mot de passe :
- Pour accéder aux réglages généréalement utilisés, tapez "admin"
- Pour accéder à l'ensemble des réglages possibles, tapez "superadmin"
The relation between SDI connectors and sources name inside the system
| multiCAM SDI BOX 8+1 | |
| SDI OUT | DeckLink Studio 4K |
| SDI IN/OUT | DeckLink Quad 2(8) |
| SDI IN 1 | DeckLink Studio 4K |
| SDI IN 2 | DeckLink Quad 2 |
| SDI IN 3 | DeckLink Quad 2(2) |
| SDI IN 4 | DeckLink Quad 2(3) |
| SDI IN 5 | DeckLink Quad 2(4) |
| SDI IN 6 | DeckLink Quad 2(5) |
| SDI IN 7 | DeckLink Quad 2(6) |
| SDI IN 8 | DeckLink Quad 2(7) |
| DVI-IN 1 | Video (00 Pro Capture DVI) |
| DVI-IN 2 | Video (01 Pro Capture DVI) |
Video outputs

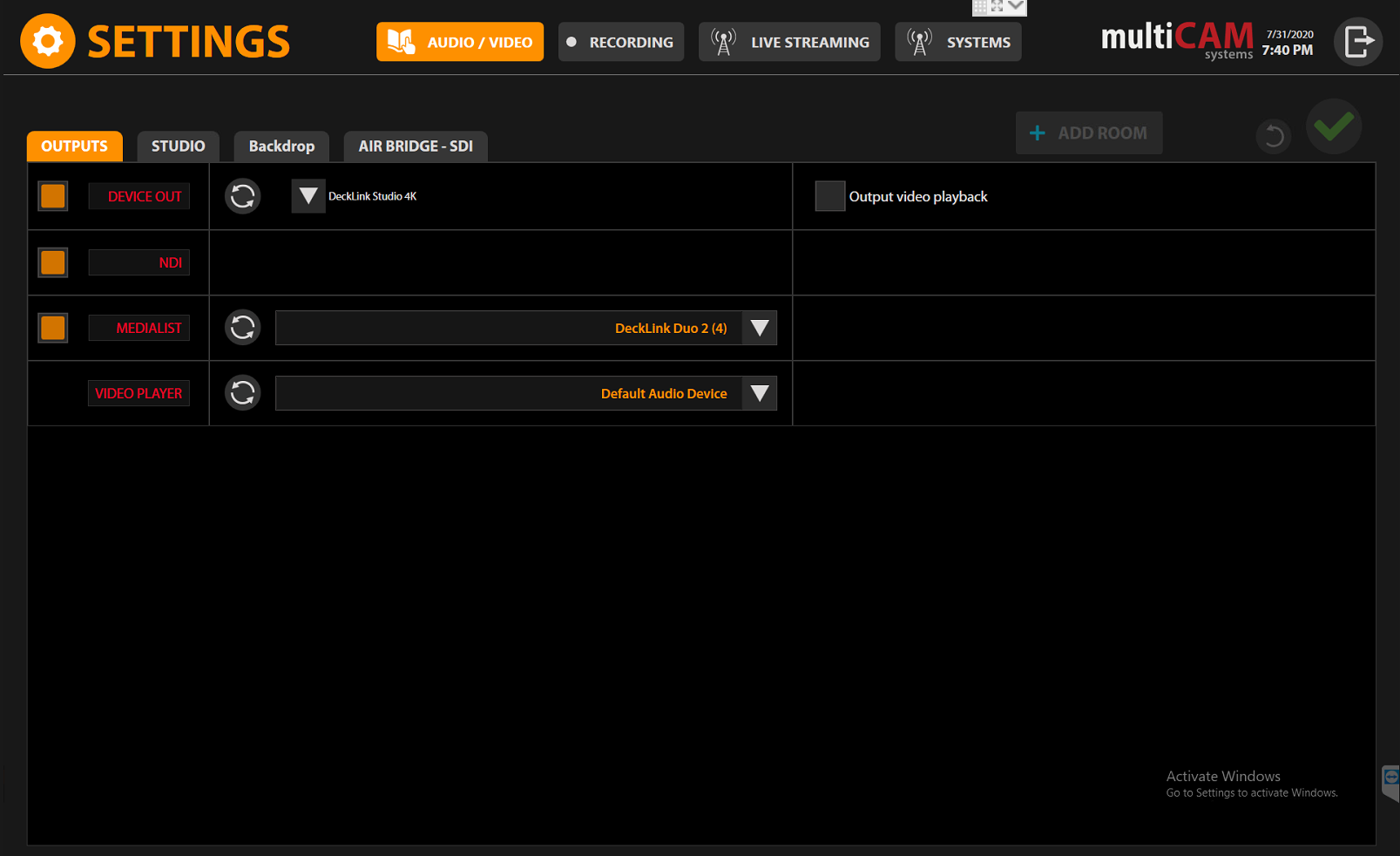

In the OUTPUTS, tab you are able to configure output options except Live streaming.
Device out
In the DEVICE OUT section, you can enable
or disable
SDI and HDMI outputs with the checkbox on the left.
NDI out
In the NDI OUT section you can enable or disable NDI outputs with the checkbox on the left.
Video inputs

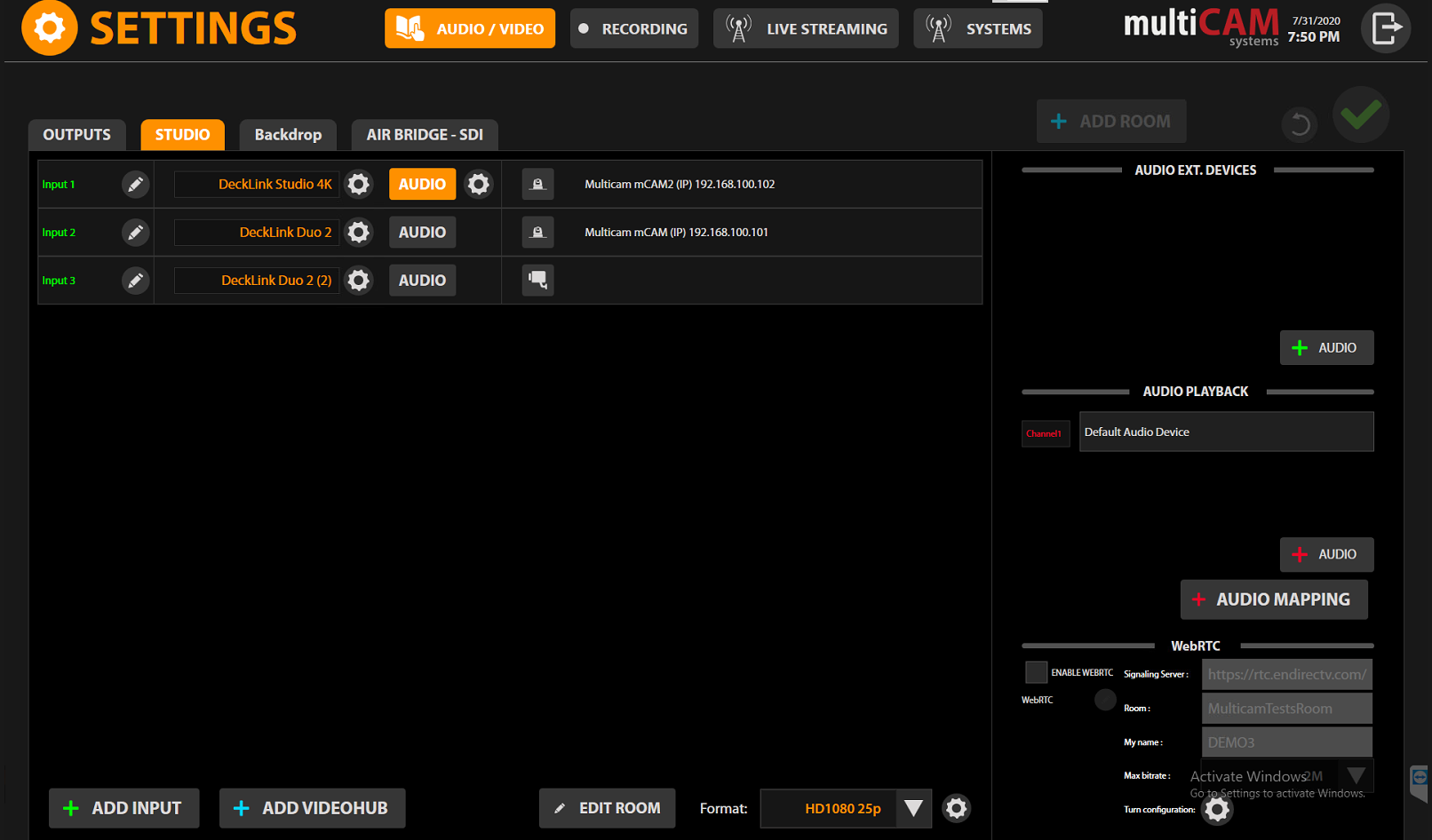

In the INPUTS tab, you are able to configure input video sources.
Video format
First, you have to choose the system video format with drop-down menu Format in the bottom of the interface.
This format will be automatically applied for PGM output.
Inputs

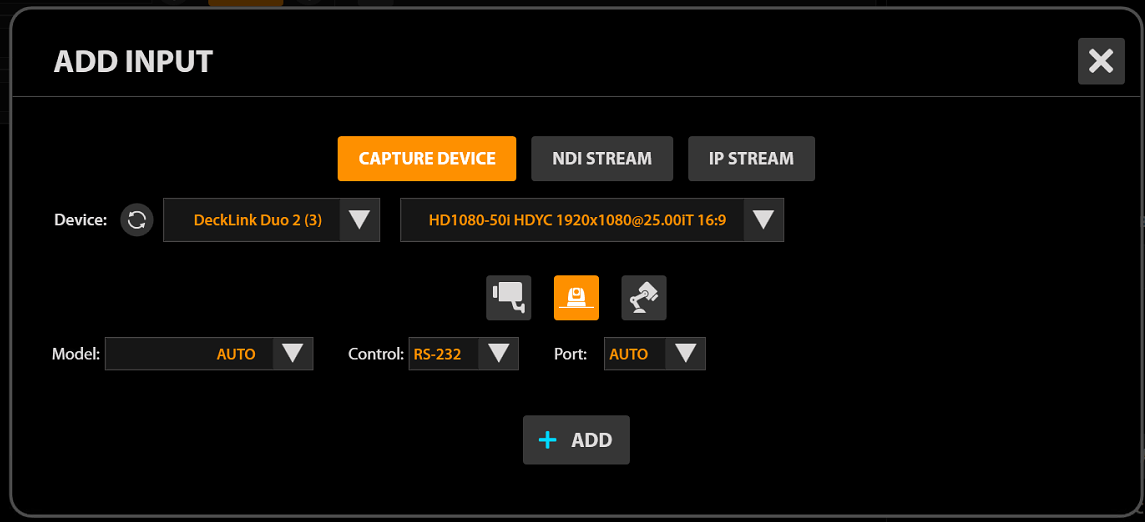

To add a new input, click on the
button.
There are 3 input options (Capture device, NDI stream, IP stream) available for the multiCAM SDI BOX and 2 input options (NDI stream, IP stream) for multiCAM IP BOX.
Add SDI input

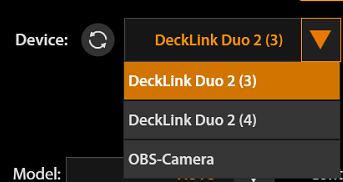

To add a SDI input, click on
. In the Device drop-down menu choose input.

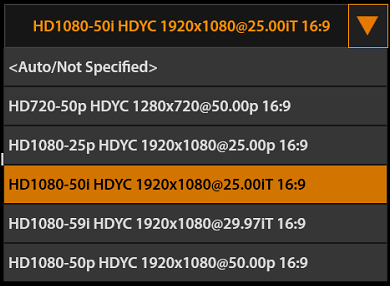

In the Format drop-down menu, choose the correct video format.
All video formats (System, Source input and Cameras) have to be the same.
Add NDI input

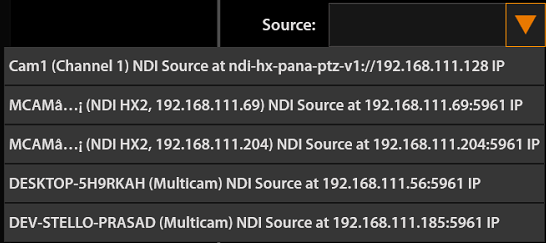

To add a NDI input, click on
. In the Source drop-down menu, choose the correct NDI source.
Add IP input
To add an IP input, click on
. In the field Stream, add the RTSP address of the source and choose the Buffer option: automatically - Low delay, or manual buffer size.
Type of inputs
multiCAM Suite supports 4 type of the inputs: PTZ camera, fixed camera, robotic systems (multiCAM SPIRIT) and PC-Input. Full list of integrated PTZ cameras can be found here.
PTZ camera configuration

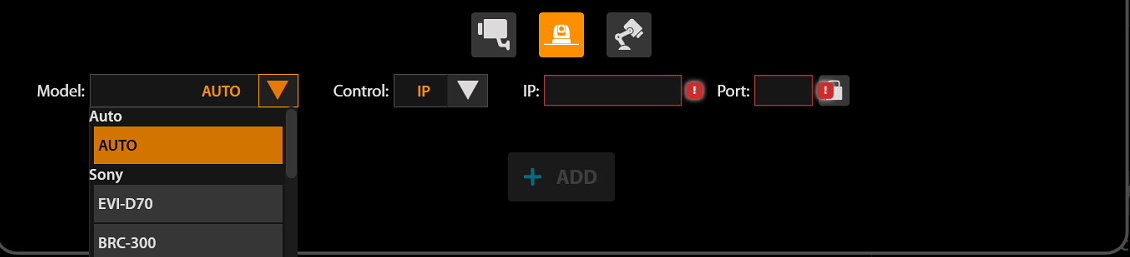

Click on the
inside the ADD INPUT window. In the Model drop-down menu, choose the camera model, Control type - IP, enter IP address of the camera and port.
Fixed camera configuration
If the current input is used for a fixed or handle camera, or as an input from other devices, click on
in the ADD INPUT window.
Robotic systems configuration

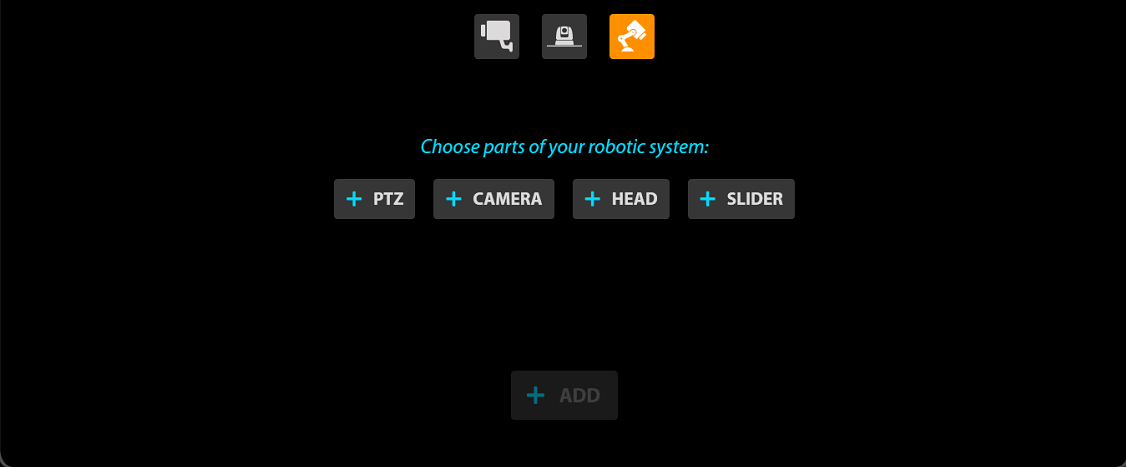

Click on the
inside the ADD INPUT window and choose the type of the robotic system.
PC-input configuration
For using an input as a PC-input, click on and enable PC-INPUT checkbox.
