Video Output Settings
Video outputs
In the OUTPUTS tab you are able to configure output options except Live streaming.

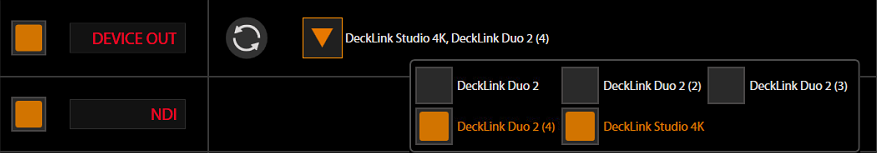

Device out
In the DEVICE OUT section you can enable
or disable
SDI and HDMI outputs with the checkbox on the left.
To enable 2nd SDI output, click on the arrow and choose Decklink Duo 2(4) for SDI BOX 4+1 and Deklink Quad 2(8) for SDI BOX 8+1.
Decklink Studio 4K should be chosen as a main output, Decklink Duo 2(4) for SDI BOX 4+1 and Deklink Quad 2(8) for SDI BOX 8+1 as a second output.
NDI out
In the NDI OUT section you can enable or disable NDI outputs with the checkbox on the left.
Medialist
In the MEDIALIST section you can enable or disable external output to send video from Media Player to any other devices.
Then you need to select the output channel between NDI or SDI.
Medialist NDI output
You apply by clicking on
.
The NDI stream will be shown like "MACHINENAME Multicam Medialist".
Medialist SDI output
The dropdown menu lists all devices supporting feed output.
Please make sure to not use a device already used as an input in your Video Settings input.
You apply by clicking on .
Output video playback
With Output video playback you can enable showing video from MEDIALIST on PGM output in full screen mode.
